SPECIFICATIONS

Average Life (hrs): 50000

Brand Name: HERULED

Certification: ce,CE,RoHs

Color Temp(K): Full Color

Hign-concerned Chemical: None

Is Batteries Included: No

Is Smart Device: Yes

Item Type: Strip

LED Chip Model: WS2812B

LEDs Number/M: 30//60/144

Luminous Flux: 60-249

Model Number: TV PC Case Blacklight

Occasion: LIVING ROOM,LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 7.36W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30//60/144

Strip type: SMD

Voltage: 5V

Waterproof: Yes

LED Strip Light WS2812B 1M-5M RGB 5050 String Flexible Lamp Tape DC 5V USB Bluetooth Control TV Backlight Home Party Decoration

Note: Please only use 5V power !!!

Pay Attention：

*Led Strip Welded by 0.5m is very normal in an electronic product,not a quality problem.

*WS2812B Led strip can be cut buy every "one" led chip!

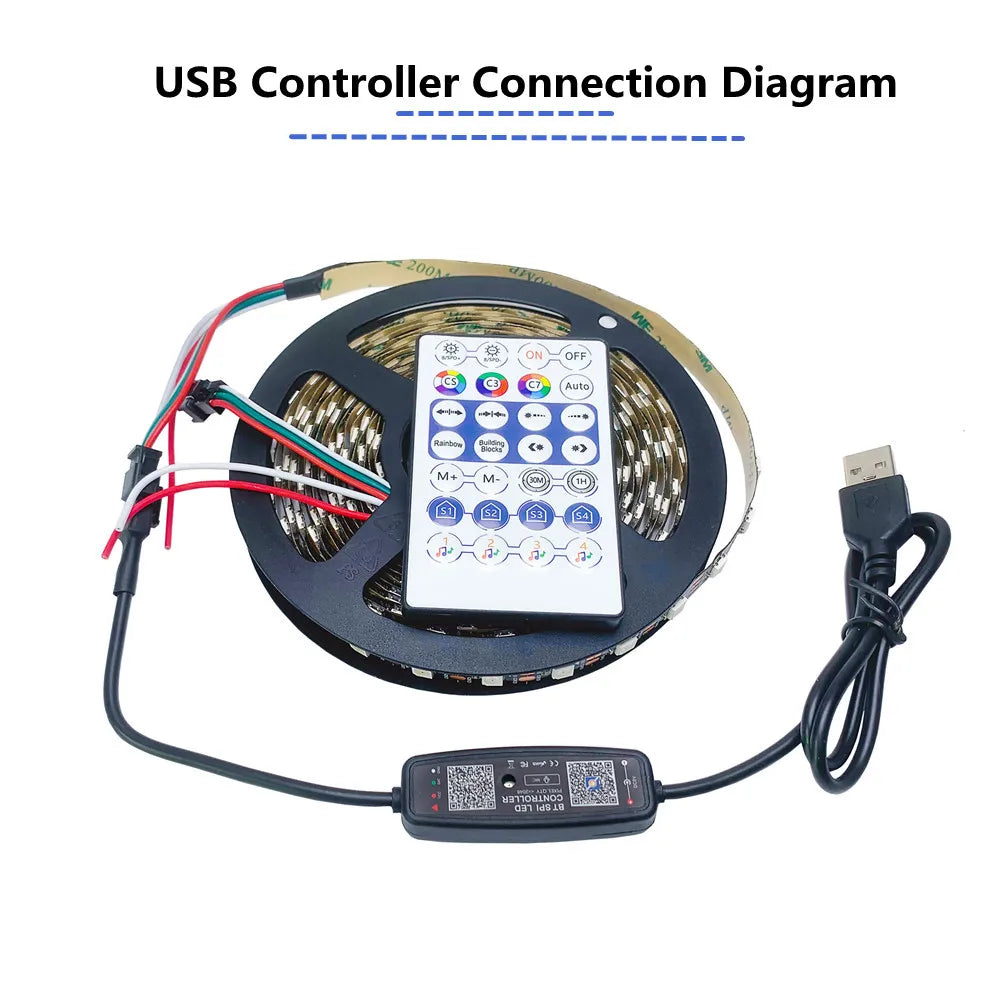

*Please Make Sure your USB Output to Controller is DC5V

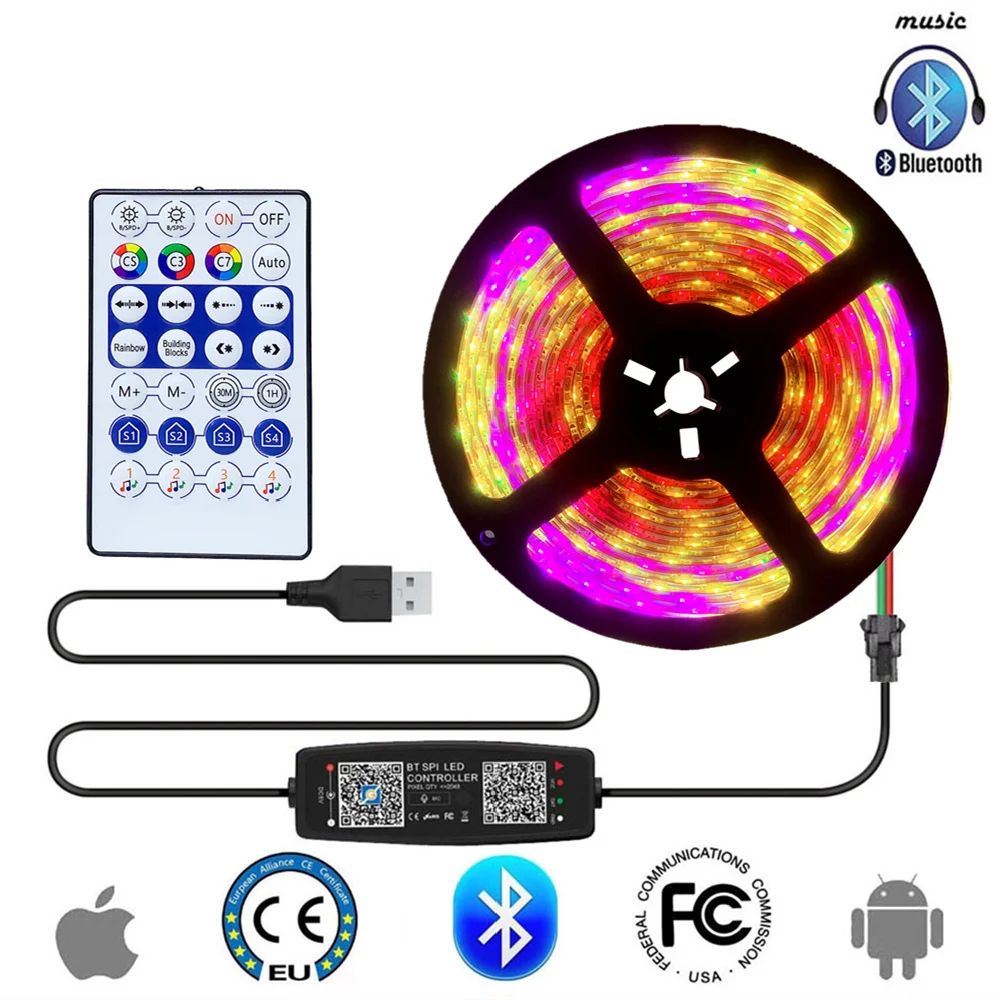

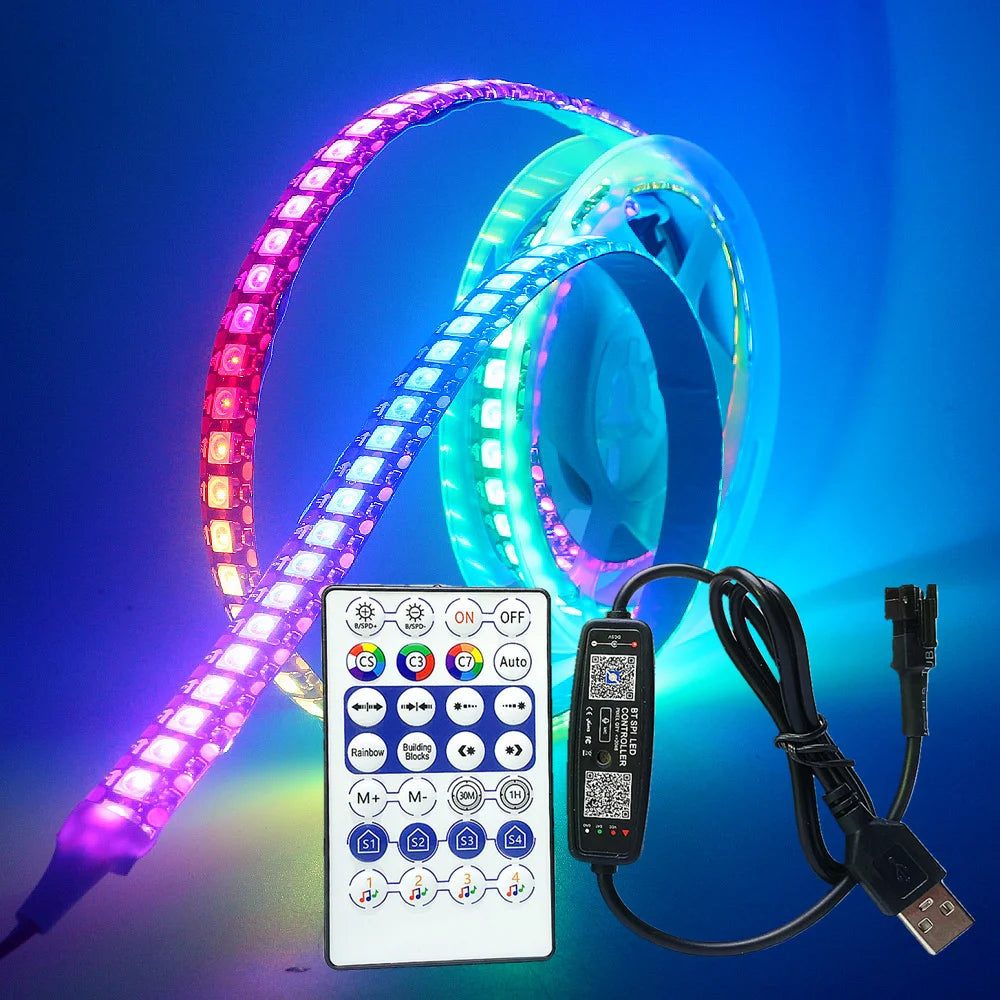

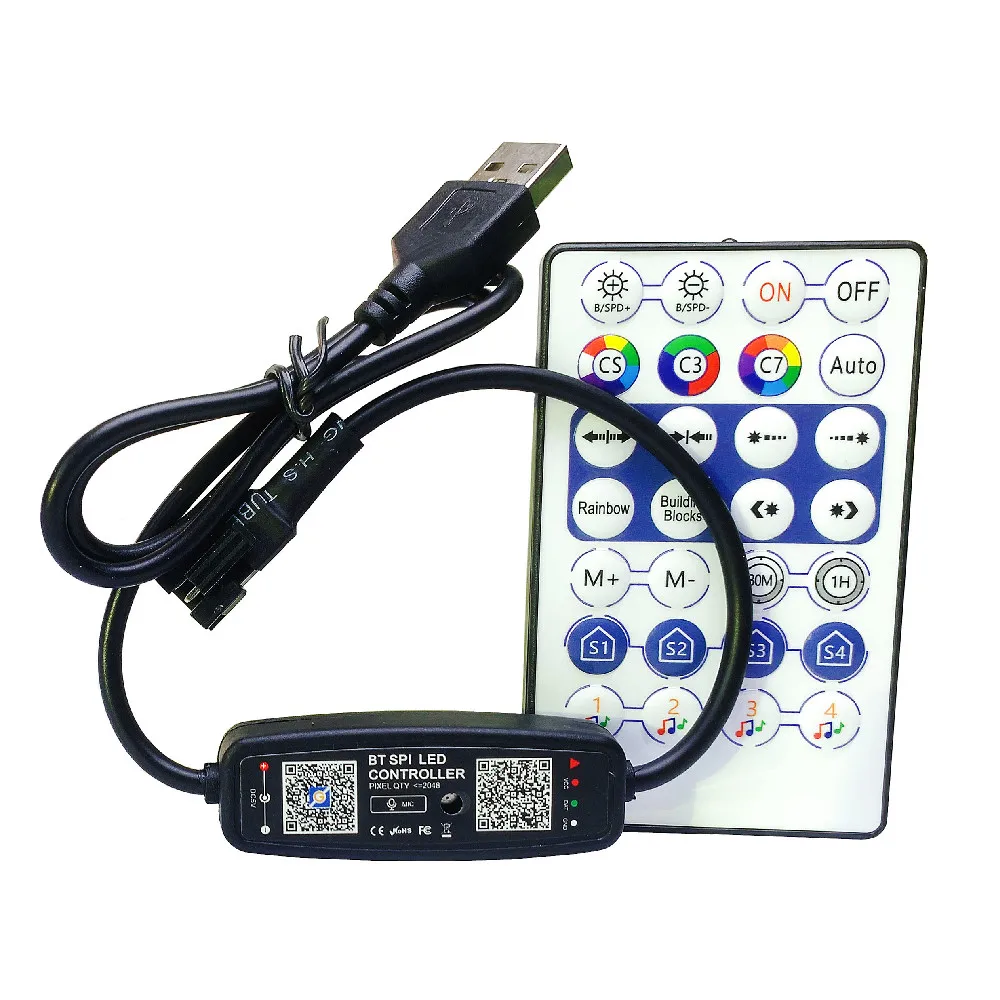

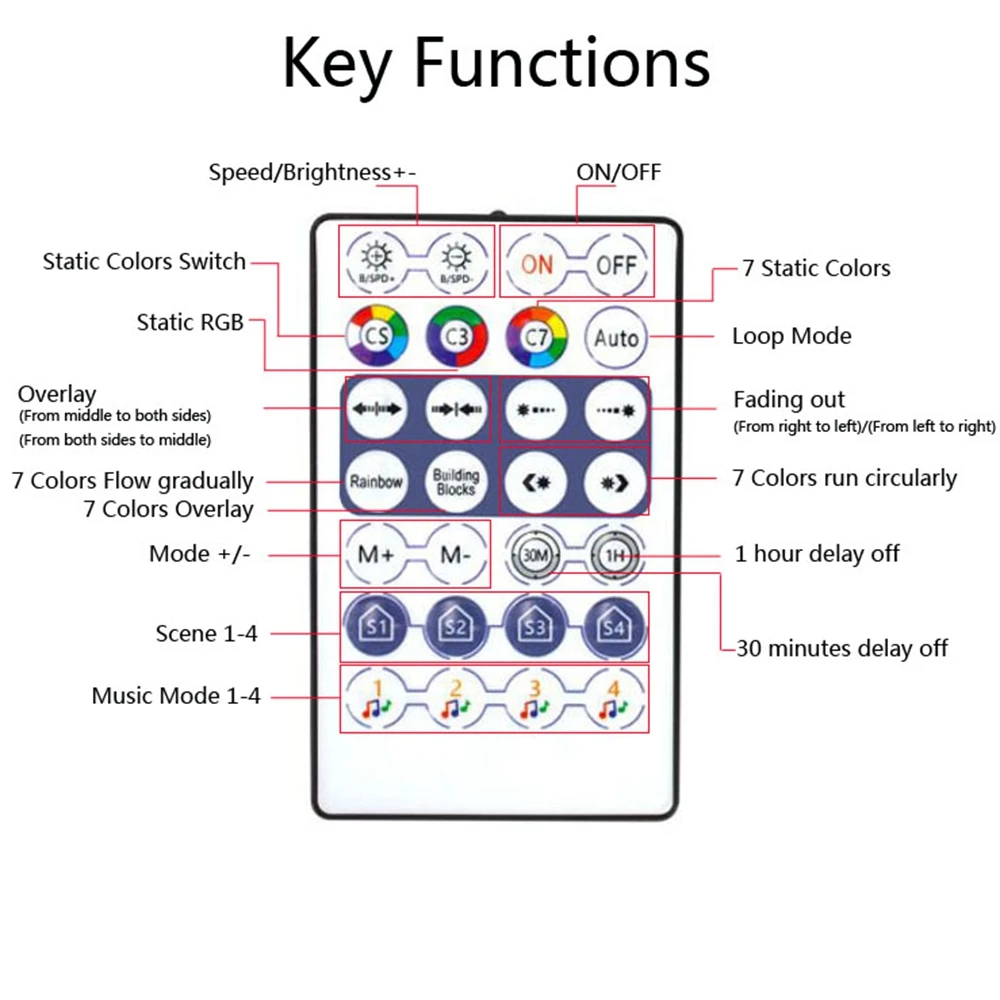

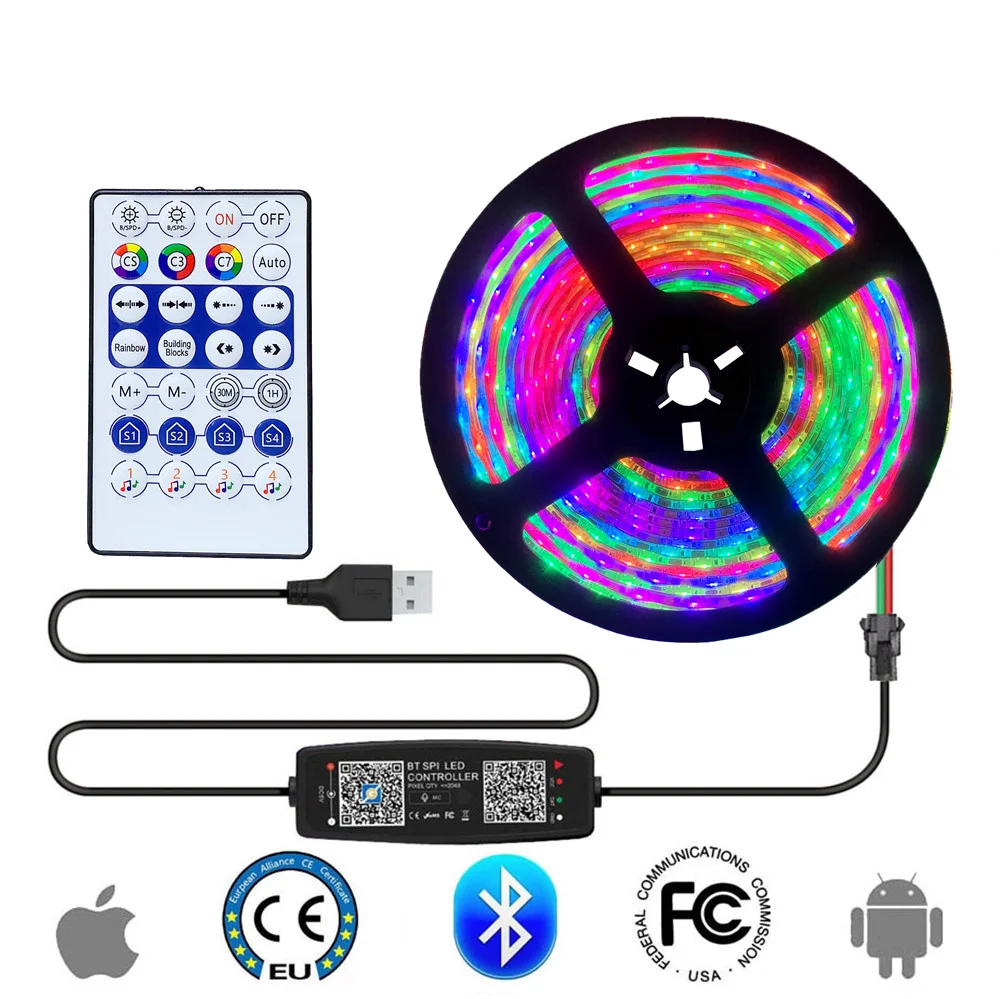

*This link Include Led Strip,USB Bluetooth Controller

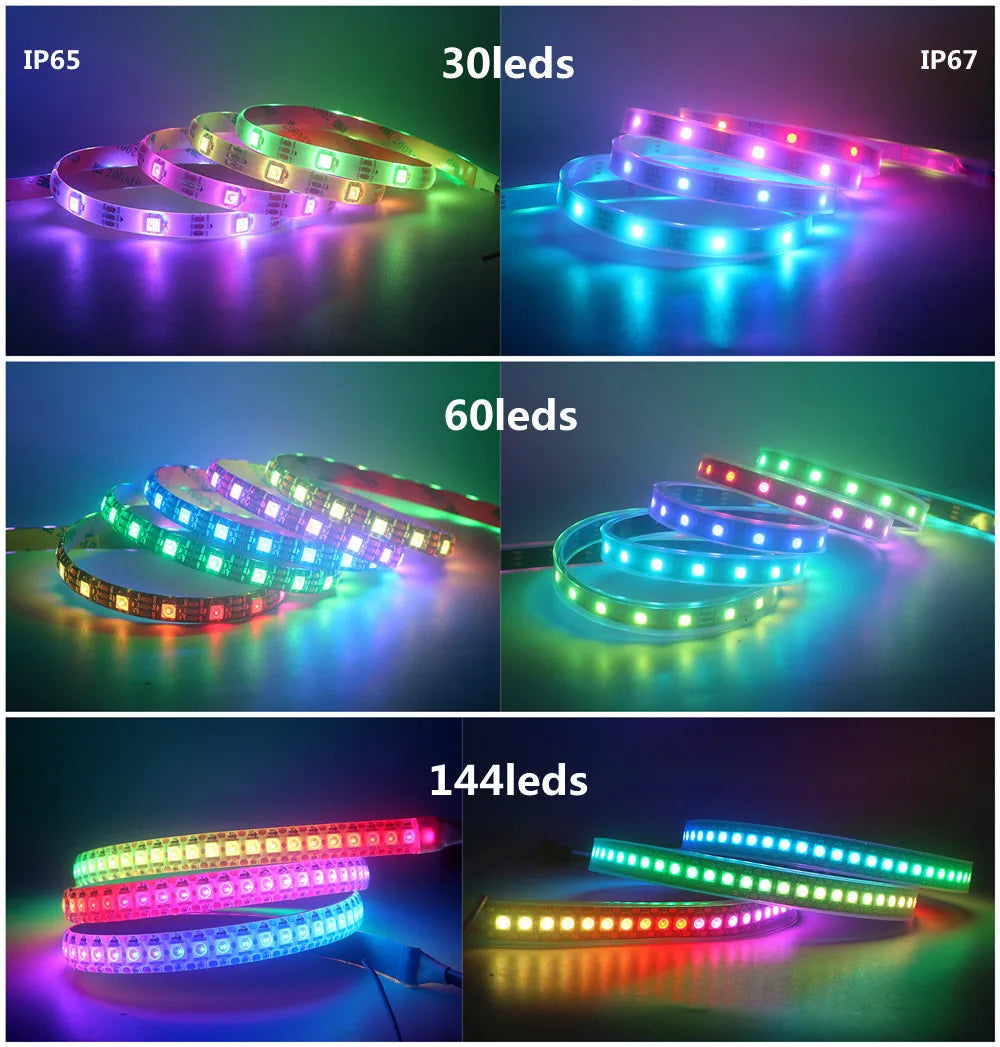

*Protection Rate:

IP30: Non- Waterproof

IP65: Waterproof in Silicon Coating

IP67: Waterproof in SiliconTube

*Power use:

5V 1A Work With 30LEDs 0.5M 1M 2M ,60LEDs 0.5M 1M,144LEDs 0.5M

5V 2A Work With 30Leds 0.5M 1M 2M ,60LEDs 0.5M 1M 2M,144LEDs 0.5M 1M

Product Details:

Input Voltage: DC5V

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2812 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

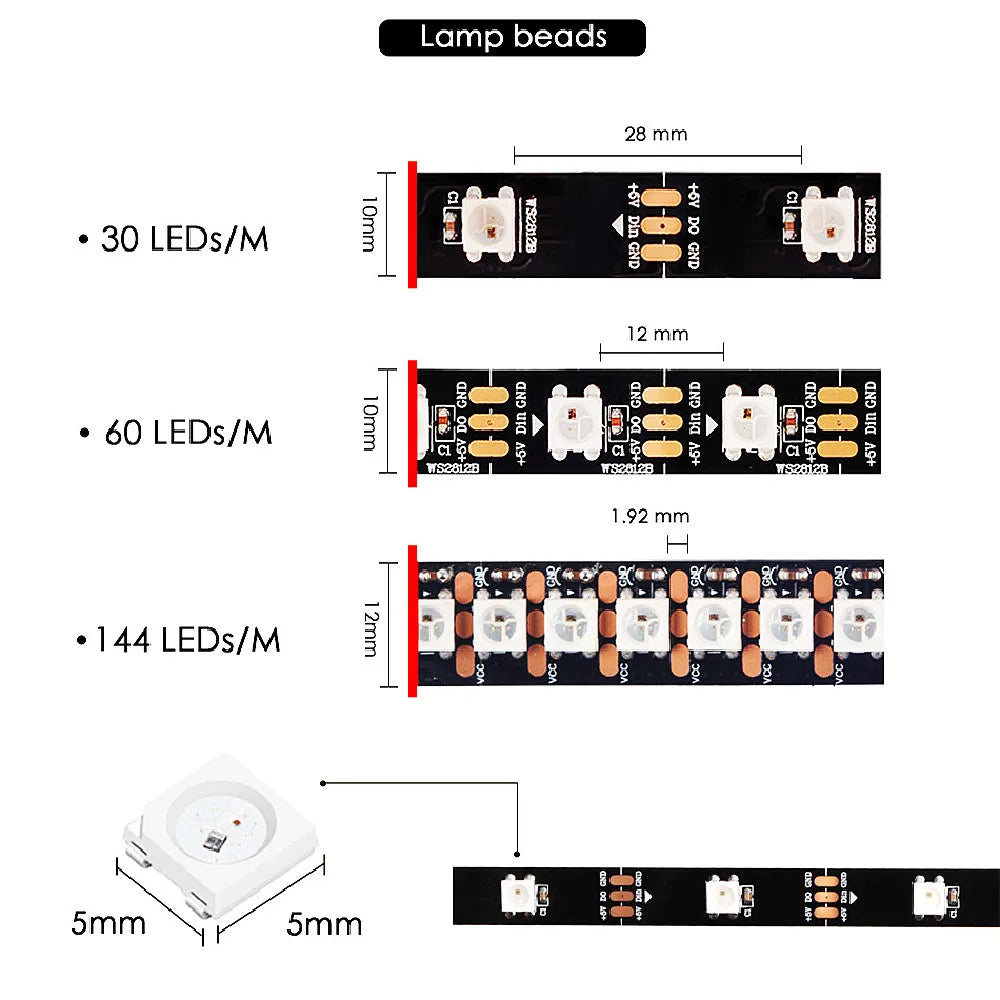

Pixels: 30/60/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256

Bits/Color: 8-Bits/Color

FPC Width: 30Leds/m----10mm

60Leds/m----10mm

144Leds/m----12mm

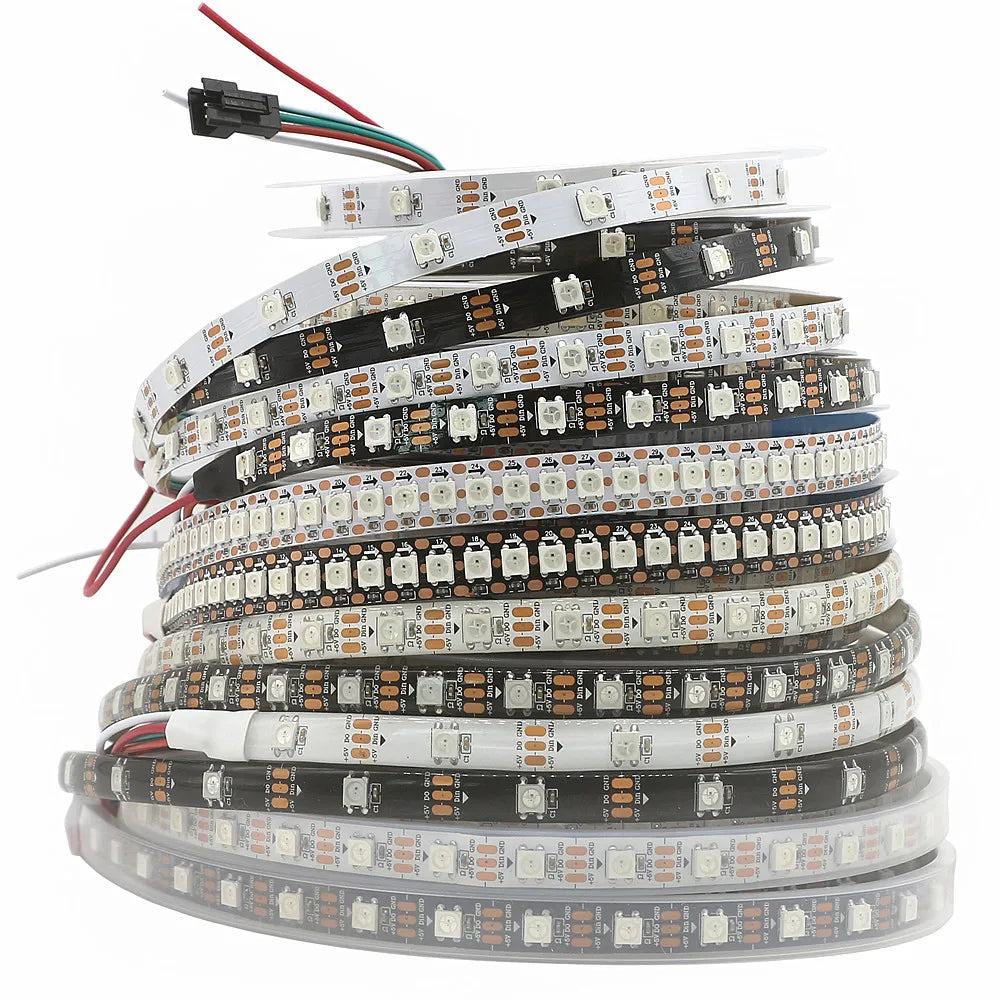

PCB color: Black/White

Protection Rate: IP30/ IP65 /IP67

Colors: Full Color RGB, Dream Color Changing

Cuttable: Every LED is Cuttable

Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)
